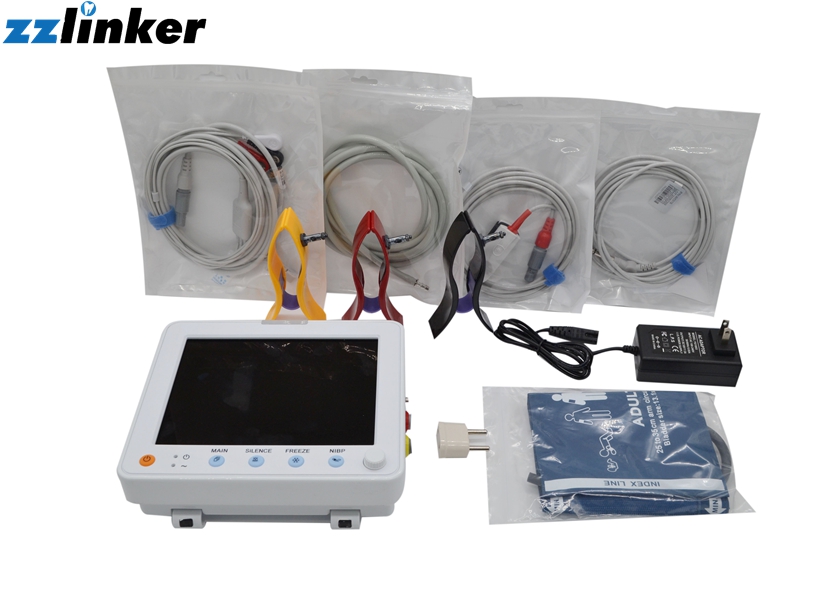

Portable Patient Monitor (Figure 1-1) is adaptable to adult,
pediatric and neonatal usage. It can monitor
vital signals as ECG, Respiratory Rate, SpO2, NIBP, TEMP and IBP.
It integrates parameter measuring
modules, display and recorder in one device, featuring in
compactness, lightweight and portability.
Replaceable built-in battery facilitates transportation of patient.
Large high-resolution display provides
clear view of 5 waveforms and full monitoring parameters.
| Advantage | ECG, Respiratory Rate, SpO2, NIBP, TEMP and IBP |
| Transport and Storage Altitude | -500 to 13,100m(-1,600 to 43,000ft) |
| Transport and Storage Humidity | <= 93 % |
| Transport and Storage Temperature | -20 ~ 60 (C) |

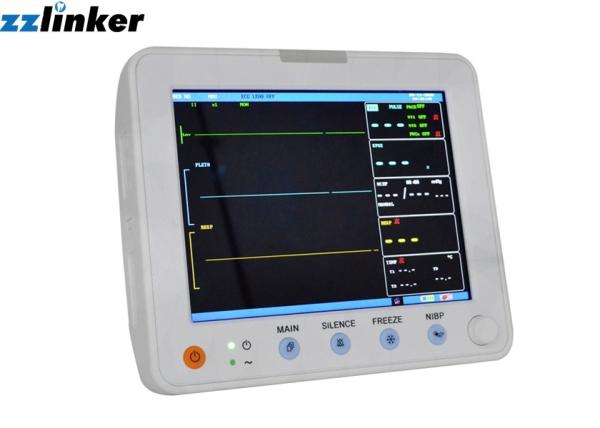

The POWER switch is on the left quarter of the front panel (in
Figure 1-1). The POWER indicator(in
Figure 1-1) and the BATT indicator ( in Figure 1-1) lights when the
device is powered on. The
ALARM indicator flashes or lights when alarm occurs ( in Figure
1-1).The sockets of the sensors are
at the right side. The recorder socket is at the left side. Other
sockets and power plug-in are at the
back.
Alarm Limit
The system can display the alarm limit. The method is:
Select“SELECTION" item in“SYSTEM MENU" to access “SELECTION"
sub-menu, in which the
user may set up the alarm limit. Set“ALM LIMIT" to ON to display
the alarm limits of the paramneters
displayed on the screen or OFF to hide the alam limits.
Length of Alarm Records
The system may record the information prior to and after the
occurring of alarm if physiological
alarm occurs. Three recording time is provided: 8s, 16s and 32s,
which are the total length of the
time prior to and after the alarm. For example, 8s contains the
respective information of 4s before
and after the alarm. 16s contains the respective information of 8s
before and after the alarm, etc.
The user may select different recording time based on clinical
requirement. The method is listed
below;
Select“AL ARM SETUP" in“MONITOR SETUP" to access the sub-menu of“AL
ARM SETUP".
In the“AI ARM REC TIME”item, the user may choose the length of
alarm record. There are three
options for user to select 8s, 16s or 32s.
Time Setup
Select“TIME SETUP" iterm in“MONITOR SETUP" menu to access the
sub-menu of “TIME
SETUP" as shown below. System time is in format of year, month,
day, hour, minute and second Pick
the item you wish to modify and tum the knob, the figure will
increase or decrease by 1 at each switch.
Then select“EXIT" item to retum to the previous memu.
New patient enrolment
Recording
Trend and Alarm Review
MONITOR SETUP
Drug Calculation
Maintenance
Portable Patient Monitor features flexible configurations. You can
configure various aspects of the
monitor, inc1uding the parameters to be monitored, sweeping speed
of the waveforms, audio signa1
volume, and printout text.
Press the“MENU"" hot key on the lower right part of the screen to
call up“SYSTEM MENU". The
configuration is realized through operations on the SYSTEM MENU, as
shown below.
