LK-C61 Original Vatech EzSensor Dental Intra Oral Imaging X-Ray
Sensor Korea Made Size 1.5
| Detector Structure | Low Noise Hybrid CMOS |
| Dimension(W x L x T) | 1.14 x 1.52 x 0.19 inch |
| Pixel Pitch | 0.035mm |
| Active Pixel Array | 686 x 944 pixels |
| Dynamic Range | 4096 |
| Signal to Noise Ratio | >37dB |
| USB Cable length between Controller and PC | 3m |
Electrical safety
The covers of the device may be removed only by qualified and
authorized technical personnel.
This device can only be used in rooms or areas which comply with
all laws and regulations applicable to
electrical safety in the medical premises, such as CEI standards
for the use of an additional ground terminal
for equipotential connections. This device must always be
disconnected from the power supply before
cleaning or disinfecting.
Water and other liquids must not be permitted to penetrate inside
the device, where they could cause short
circuit or corrosion. No protection is supplied against liquid
penetration.
Explosion safety
This device is not recommended to be used in the presence of
flammable gases or vapours. Some
disinfectants evaporate and form explosive or flammable mixtures.
If disinfectants of this kind are used, it is
important to let the vapours disperse before using the device
again.
For improvement of product performance, supplementation, or
follow-up of information; the contents of this
manual are subject to change without separate prior notice.
Main Feature:
EzSensor is available in two sizes(1.5 and 1.0). Size 1.0 is
suitable for children, while size 1.5 is appropriate
for adult patients.
● Excellent image quality based on advanced CMOS technology
● Optimized sensor shape for human oral structure
● Low-dose performance
● Easy-to-use USB 2.0 interface
There are also many other hot sale models related dental imaging
system equipments and accessories:

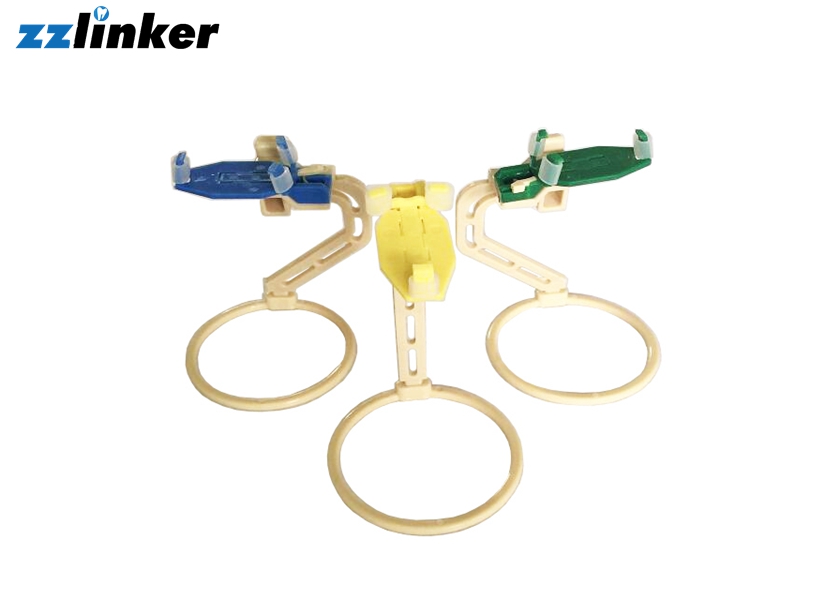

Dental X-Ray Sensor Holder
Dental X-Ray Sensor Sleeve
Portable X-Ray unit
Lead Apron
