18L Class N LK-D14 Dental Easy Autoclave Auto Drainage 110V 220V
122/134degree
Main feature:
Material Quality Stainless Steel SUS#304 Boiler chamber surface
with burnish
Surface deal with the machine foundation and the shell use high
temperature baking varnish processing
Manual give the water

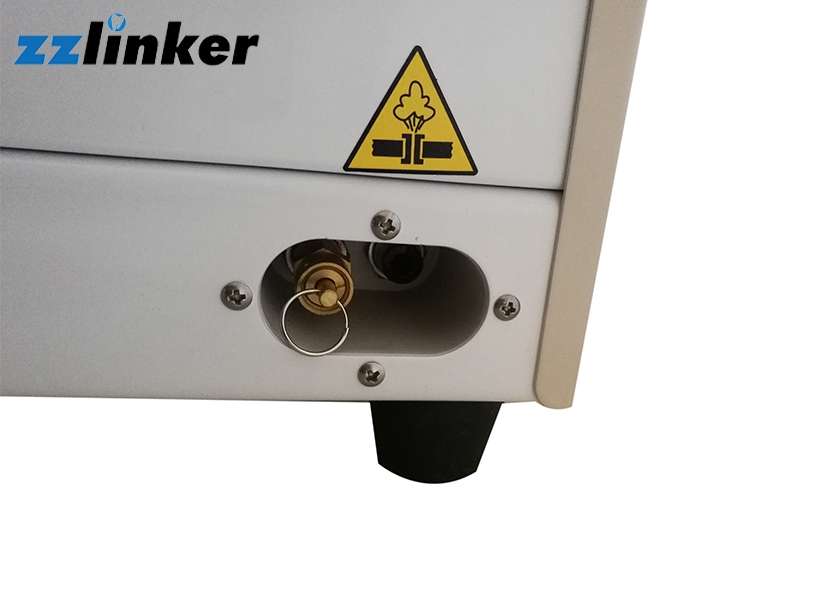

Auto Drainage
Class N
Specification:
| Chamber Size | (Ø)25×(D)35 CM |
| Material | Stainless Steel #304 |
| Capacity | 18L |
| MACHINE SIZE | (L)58×(W)39×(H)36 C |
| POWER | AC110V/900W/8A ; AC220V/900W/4A |
| TEMP/PRESSURE | 121℃/0.12Mpa ; 134℃/0.22Mpa |
| STERILIZATION TIME | 25Min / 6Min |
| SAFETY | Heating-over protection ; safety valve |
| TEMP CONTROL DESIGN | chip control |
OPTIONAL ACCESSORIES :

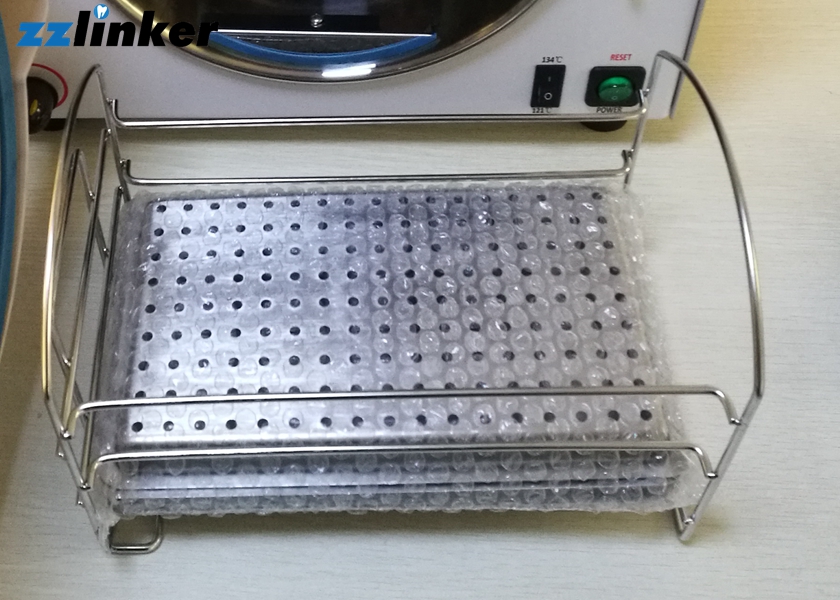

tray basket × 1pc ; tray holder × 1pc
Sterilization tray × 3pcs ; steam exhaust pipe × 1pc
| Tray Rack1 | 1 |
| Trays | 3 |
| Tray Removal Tong | 1 |
| Draining Tube | 1 |
| Operation Manual | 1 |
| Power Cord | 1 |
| Filter Core | 5 |
Installation requirements:*
At least 50 cm at the top of sterilizer and at least 50 cm on bocm
in front to fully open sterilizer doors.
Sterilizers must be installed in a ventilated environment andmust
not be blocked.
Sterilizers must be installed on horizontal worktables.
Do not place sterilizers where there is radiation.*
Do not place sterilizers in places where water is spattere
USE STEP
Step 1:pour the 800ml distilled water into the chamber.
Step 2:Load items on to the tray.
Step 3:Close the door and insert the bolt
Step 4:Close the discharge switch.
Step 5:Select the temperature you need to disinfect. (121℃or134℃)
Step 6:Turns on the POWER switch.(starts to work disinfect)
DISINFECT PROCESS
---Heating
---First emissions steam
---Second emissions steam
---The temperature rise arrives at the disinfection temperature
---Start to disinfect
---The disinfection completes
---Buzzer sound
---The buzzer stops the sound
---Turns on the steam emissions switch
---Waits for 10 minutes
---Opens the door
---The disinfection completes
