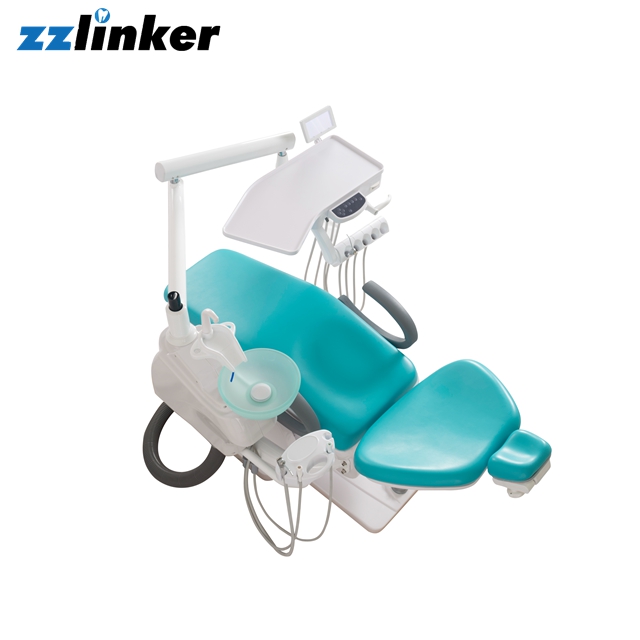

LK-A11Pro Timotion Motor Low Mounted Electric Dental Chair Unit
Dental Chair Unit Instruction:
External Pure water supply system for easy changing.
Big dentist & assistant instrument tray supply enough work space to
make work easy & save time.
Smooth “Soft Entrance” function (seat descends when weighted)
Power for max. Load 180 kg
Chair construction anti rust powder coated
Special shaped backrest for protecting shoulder and dorsal
Strong metal ground plate for good stability of the unit
Dental Chair Unit Parameters
| Supply Voltage | 110V 60Hz or 220V 50Hz |
| Controlled Source | electric valve |
| Motor | Timotion, Taiwan Brand |
| Water Supply | Automatic thermostatic |
| Handpiece Tube | 3 sets |
| Three Way Syringe | 2 sets |
| Water Suction and Saliva Ejector | 1 set |
| Movable Spittoon | 1 set |
| Strong and Weak | 2 set |
| Operation Light | 1 set |
| X-film Viewer | 1 set |
| Dental Stool | 1 set |
| Multi- fuction Foot Pedal | 1 set |
| Water Purified System with Bottle | Bulit in |
| Package | Wooden Case |
| Packge Size | 136*96*112cm (L*W*H) |
| 20GP | 20pcs |
| 40HQ: 42pcs | 40pcs |
Dental Chair Unit Features:
1.Standard chair frame, rigorous scientific design, precise
processing technology, double coating anti-rust treatment.
2.The dental chair motor is Taiwan brand TiMOTION,which is DC
low-voltage motor, smooth and durable
3.Classic injection molding instrument plate, with Omron high-quality
switch keyboard, integrated chair position adjustment, water
heating, preset quantitative water supply program, first aid
position and reset function, with LED xray film viewer.
4. New side box and built-in water storage bottle, more beautiful,
with rotatable spitton which is convenient for customers.
5.Use EU-certified solenoid valve.
6.Use LED sensor oral light with dual-color temperature light
source, has 8-level brightness adjustment.
Rotating pillow- lock holder
7.EI type transformer, wide environmental starting conditions,
large overload current allowed in a short time, physical and
electrical safety isolation, protective cover, effective protection
of coil insulation, built-in self-recovery temperature insurance,
more effective protection of electrical safety.
8.The strong and weak drain pipe adopts environmentally-friendly
steel wire hose pipe, which can effectively prevent the bend and
make pipe more durable.
9.Mlti-function foor pedal
10. The main pylon can be rotated, making it easier to operate and
prevent scratching, reducing the risk of medical staff.
Specifications of Dental Chair Unit
Supply Voltage110V 60Hz or 220V 50Hz
Air Pressure＞0.55Mpa
Water Pressure 0.2Mpa-.04Mpa
Lowest position of chair 440mm
Highest position of chair 860mm
Chair-back highest 5°
Chair-hack lowest 85°
Patient Chair:
1. Rotary Soft & big Chair
2. 2. Programmable chair programs:
Up & down; forward & back program
3) Spittoon position
Auto return function
3. Chair construction anti rust powder coated
4. Seamless upholstery with more available colors
Assitan Tray:
– Rotating instrument tray
– assistant touch pad allows control for chair movement, cup filler
and bowl rinsing
– saliva ejector and high surgical suction lines
– Cup filler with timer function
– 2 electric main plumbing entrance valves for air and water
– 4 instrument holders
– big space instrument tray under-mount
Company Instruction:
We have been making dental handpieces for more than 12 years. Our chief engineer has even more than 30 years experience.
Our products include high speed handpiece, low speed handpiece, LED
curing light, sander gun and endo motor etc.
Importantly, our company is the patent owner of E-generator air
drive high speed handpiece and disposable handpiece,etc.
Every year, new products with new ideas are to be produced
following trends of the dental equipment industry.
Now,we have several new models,including 4:1 reciprocating low
speed,Wireless Endo-motor,1:5 increasing contra angle
handpiece,etc.
Are you interested in being our distributor or buying directly from
factory? Welcome to contact us for more information!
