    LK-C27A LCD Screen 20KHz 60KV 1mA Dental X Ray Machine

    Ask Lasest Price
    Brand Name : zzlinker
    Model Number : LK-C27A
    Certification : CE/ISO/FDA
    Price : Negotiable
    Payment Terms : T/T, , MoneyGram, RMB
    Supply Ability : 2000Pieces/Month
    Delivery Time : 1-3 working days
    • Product Details
    • Company Profile

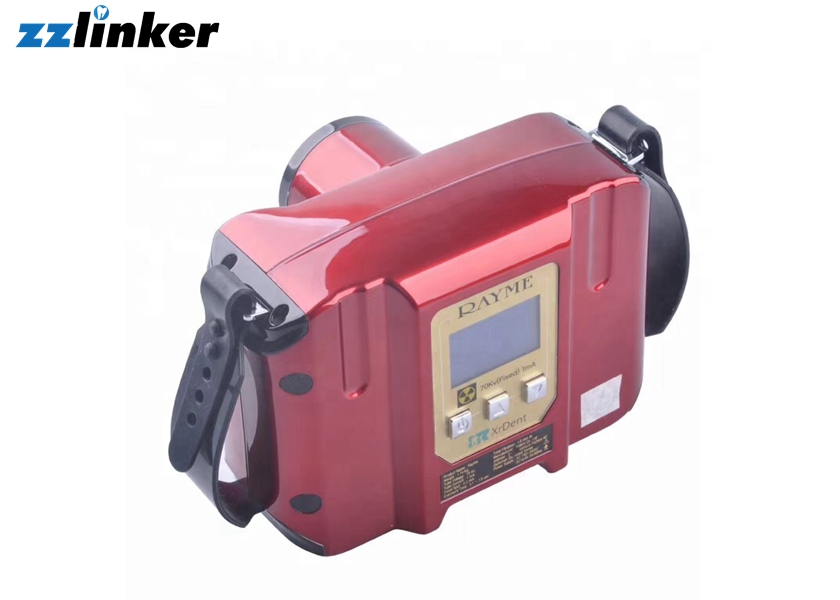

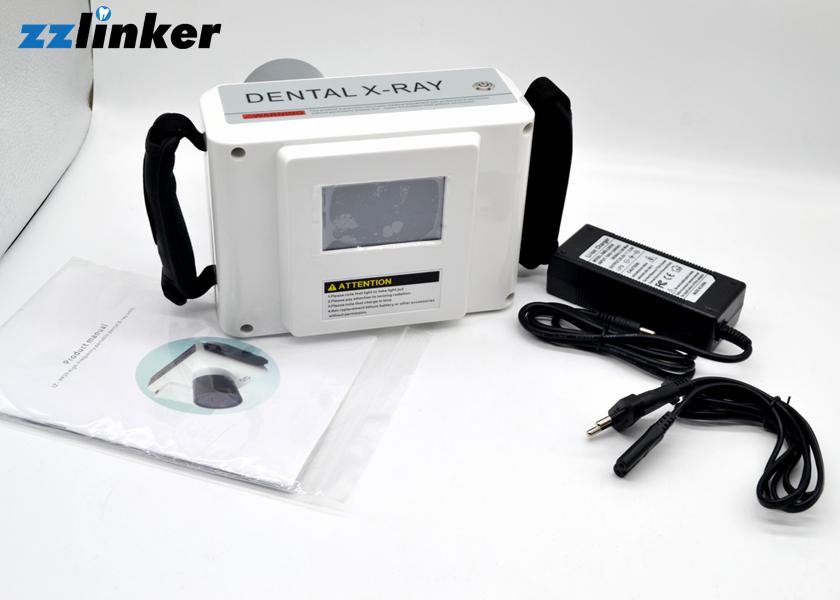

    LK-C27A LCD Screen 20KHz 60KV 1mA Dental X Ray Machine

    Toshiba Tube LK-C27A Portable Dental X Ray Camera Unit Machine Toush LCD Screen 60KV 1mA


    X-Ray Unit Input Power16.8VAC, 2.0A
    Li-ion Charger Input Power100-220V, 50-60Hz
    X-Ray Unit Output Power80W
    Li-ion battery Capacity Output Power14.8VDC, 10A
    DisplayTouch/LCD Screen
    Packing Size35*16*25cm
    Weight3kg
    FrequencyHigh

    Product features


    1. This device adopts microcomputer chip processor, high frequency inverter output of a more stable way of x-rays, to generate high resolution imaging effect.

    2. This equipment adopts the microfocus X-ray generator, reduce equipment volume and weight, it is more convenient to carry.

    3. This equipment adopts the high definition resolution color LCD touch display system, simple operation.

    4. This equipment design has a boot self-checking system self-diagnosis function, easy maintenance and repair.

    5. This equipment is one-to-one custom-made using high capacity lithium battery, durable.


    Warning and attention


    Warning: this product is precision electronic medical equipment, non-professional personnel without permission, Prohibit operation the following items:

    1. To open the shell products;

    2. Replacement lithium battery and other accessories.

    Note: this product is precision electronic medical equipment, in use process should pay attention to the following items:

    1. Please note that when using the movement wants gently;

    2. When using may produce a small amount of ionizing radiation, pregnant women and young children, please pay attention to the protection;

    3. It is prohibited to use in the process of charging, long time need not, please note that charge in a timely manner.


    Technical parameters


    2.1 Power parameter

    1. Input Power: 100-220VAC/50-60Hz/1.2A

    2. Output power: 14.8 VDC / 10 A

    3. Li-ion battery capacity: 7800mAh


    2.2 X-ray generator Parameters

    1. Input Power: 16.8VAC/2.0A

    2. Output power: 80 W

    3. Tube voltage / current: 60KV/1mA

    4. Operating frequency: 20KHz

    5. Exposure time: 0.1-2.5S

    2.3 X-ray tube parameters

    1. Max. Operating tube voltage: 80KVp

    2. Filament features: 3±0.5V/2.5A

    3. Nominal focal spot value: 0.3mm

    4. Target angle: 12°

    5. Inherent filtration: 0.75mmAl


    2.4 Machine parameters

    1. Display mode: LCD color touch screen

    2. Packing size: 35X16X25cm

    3. Net weight: 2.0kg


    2.5 Beam limiter parameters

    1. Output the focal length: 110 mm

    2. Output radiation scope: φ5mm

    3. Control system

    3.1 Control system description

    1. The microprocessor control system.

    2. According to the tooth bit and mode automatically choose the exposure time , time range: 0.1 -2.5 S.

    3. Manually adjust the exposure time, every time to adjust time of 0.1 S.

    4. Equipped with three block mode selection switch, respectively is: children, adults and RVG (digital sensing mode).

    5 .Manual switch can choose can extend and hand control wire.

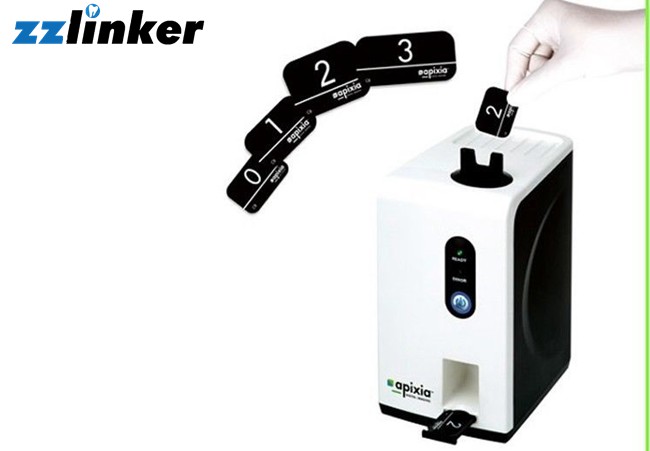

    Besides, we also have many other related dental X-Ray items:
