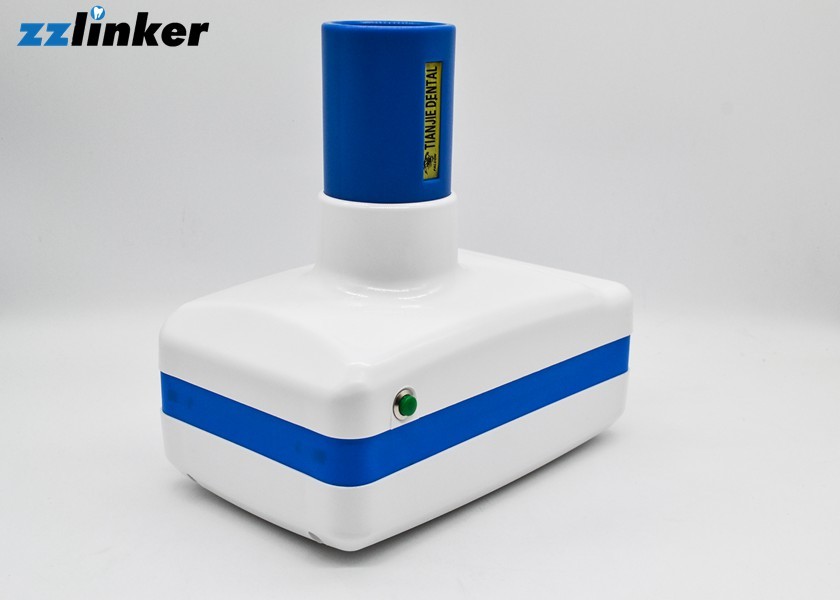

LK-C25 High Frequency Portable Dental Digital X Ray Equipment
BLX-II Toshiba Tube 0.1MA 30KHz
The Composition and Use of the Equipment
The machine is made up of two parts: the main unit and the
ballhead. The main unit includes power supply, central data
processing unit, and the part to shock, enlarge and feedback. The
ballhead is made up by components with functions of controlling
pressure and frequency and ball tube, vacuum sealed part, etc.. And
the shell is from an injection mold with lead sealing protection.
The machine is mainly used in dental clinics, to check out before
treatment, and to be used for comparison and confirmation during
and after treatment. It is the indispensable equipment for clinics
to take on the daily work, such as checking the tissue structure,
the depth of the root, the degree of the inflammation, even for the
inner inspect of the broken teeth.
As the small dose of radiation, no need for protection when using,
some hospitals purchase this machine to take films of fingers and
toes by the side of a patient’s bed.
The Dental Digital X Ray Equipment combines the advantages of
similar products at home and abroad, improvesthe shortcomings of the on-frequency Dental Digital X Ray
Equipment: such as the great current intensity,
great amount of junk-ray, etc.. The tube voltage frequency of this
machine is 30KHz, and
the tube current is 0.1MA. The radiation scope is within an
included angle of 24 degrees,
within a distance of 1.2 meters ahead. This is pioneering in China
as well as in abroad,
and is named the "green Dental Digital X Ray Equipment."
All the compenents of Dental Digital X Ray Equipment are imported
originally from abroad to achieve the
digital control of the whole machine and make the performance be
more stable and
reliable.
The useing of Toshiba 0.3 × 0.3 micro-focus tube, makes the image
clearer and more
delicate, and together with all the other imported components, the
final product is of high
quality.
Dental Digital X Ray Equipment Parameters:
| Set up work time | 0.5-9.9s |
| Self-inspection | 1.2s |
| Mainframe exterior | 28 * 20 * 8 centimeters |
| Size | 42*19*48 cm |
| Weight | 4KG |
There are films included for testing purpose, and all the
consumables can be replaced
by other similar products.
There are vacuum components and high-pressure parts inside of the
machine, so for
your safety and the maintenance of the machine, please do not open
the machine only if
you are a professional.
The tubehead is equipped with perfect radiation-shield
protection(except the radial
mouth), and tests showed the radial index is zero. Safety is
guaranteed.
Non-film inspection and storage can be realized when corresponding
to a sensor.
Points for Attention to use the Dental Digital X Ray Equipment:
1. Make sure the angle of film, tooth and ball head should be
proper when taking a picture,
keep steady as the last step of picturing, make sure there is no
position changing of the
three.
2. Turn the power off when work is done.
3. Change the battery if the remote controller lose affection or
remote distance is shorted.
4. Take pictures one minute later after it’s turned on, to keep the
ray output steady.
5. The equipment turns into protection mode automatically when the
voltage is wrong.
Then it will not be able to carry out the normal work of filming.
6. When taking pictures, the ON/OFF button could stop the objection
and then the
machine goes back to the preparation mode.
7. Use high quality tooth film and developing liquid to make clear
pictures.
8. Hand the ball head gently whening using, so as not to damage
that precious
possession of the ball.
9. Do not pull hard on the cable which connects the ball head and
main unit.
