Simulation System Detnal Chair Unit Dental Training Laboratory
Equipment Simulation System
Simple Instruction:
Dental simulating practice is very important for pre-clinical
education.kowing teaching concepts,local practices and
infrastructural conditions are seldom the same,we offer solutions
for dental simulation unit tailored to your individual needs
Structure:

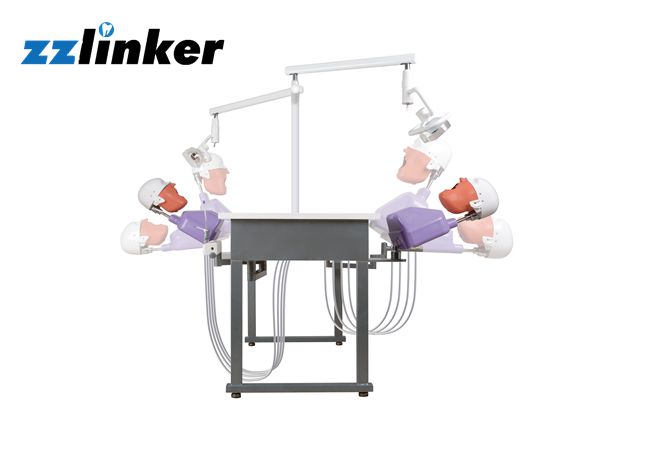

A complete system for 2 students reproducing the dental clinic
environment and simulating realistically various clinical treatment
procedures.
Each workbench has 02 student positions; Structure made in metal
with high-temperature epoxy coating; Worktop made in Medium Density
Fiber Wood with high-temperature epoxy coating Standard Accessory:
- 02 unit on a rotary arm (01 per student position)
- 02 syringe 3-way (01 per student position)
- 04 handpiece tubes (02 per student position)
- 02 manometers (01 per student position)
- 02 electrical sockets (01 per student position)
- 02 independent pressure control for regulation (01 per student
position)
- 02 Adjustable surgical light (01 per student position)
- 02 Foot controller (01 per student position)
- 02 phantom head holder (01 per student position)
Specification:
| Power supply | AC 220V, 50Hz |
| Input power | 1200VA |
| Blown fuse specifications | FR1-20, φ5×20, currency 3.0A |
| Motor | DC24V/150VA |
| Handpiece Data | Inlet air pressure:250KPA |
| Lamp | 1pc for free |
| Dentist Stool | 1pc for free |
| High-speed Handpiece | ir Pressure: 0.28Mpa-0.30Mpa Rotation : 300,000-35,000rmp Bur applicable: φ1.595-1.600mm Noise: ≤70dB |
| Low-speed Handpiece | Air Pressure: 0.3Mpa-0.35Mpa Rotation : 20,000-30,000rmp/min Bur applicable: φ2.335-2.355mm Noise: ≤70dB |
| Environmental condition | Temperature 5 ~ 40°C Relative humidity≤80% Air pressure:806 ~ 106kPa |
Our Dental Chair Unit:
Dental Office Equipment
Portable Dental Unit
Anle Dental Unit
Dental Treatment Unit
Chair Mounted Dental Unit
Dental Care Unit
Dental Vacuum Units
Portable Dental Chair
Dental System Dental Chairs
Electric Dental Chair
Ergonomic Dental Chair
Mobile Dental Chair
Dental Chair With Light
Dental Chair Light Bulb
Dental Chair Lamp
Clinic Dental Chair
Purple Dental Chair(or other color )
Pretty Dental Chair
Portable Dental Chair Light
Folding Dental Chair
Luxury Dental Chair
Dental Chair Suction Unit
mobile suction units dental
mobile dental suction unit
portable dental unit with compressor
Dental Tools
Dental Chair Suction Unit
mobile suction units dental
portable dental unit with compressor
Features:
1.Material for face mask:import
silicone,soft,elastic,anti-aging,outfall is removeable,mouth part
have
special process to protect from tearing and easy to install and
clean;
2.Skull:Injection of high quality ABS material,with 3 times
paint,high impact and abrasionresistance, and a low coefficient of
friction,appear to real man,has nice appearance,easy to adjust
angle and height;
3.Articulator:aluminum alloy die-casting, smooth surface, aluminum
alloy surface using metal paint process,easy to install;
4.Teeth model:removable soft gingiva, soft tongue, removable
teeth,A variety of dental teaching models can be selected for
imitating head models;
5.Shoulder:High quality ULC material,one time rolling
molding,anti-impact;
6.Can be used for each subject for themselves models or teeth.Match
up with it silicon rubber mould and connector to practice it can
make the gypsum model are made from seprate teeth to practice in
phantom head.
7.Jaw forward condyle Angle 30°;
8.Distance between the head on both sides of the condyle Lateral
condyle Angle 25°;
9.The distance between the two condyles is 135 mm;
10.Mouth opening height 60mm (adjustable)
11.Head rotation angle:55° to left and right side and 5°-55° behind
and front side.
12.3 colors optional for shoulder:white,green and purple.
13.Manual control phantom head;
14.Multifunction foot pedal control.
