    High Speed Dental Handpiece Lubricating Machine Three Connectors 18L Volume

    Ask Lasest Price
    Brand Name : zzlinker
    Model Number : LK-D61
    Certification : CE/ISO/FDA
    Price : Negotiable.
    Payment Terms : T/T, Western Union
    Delivery Time : 3-4 working days
    • Product Details
    • Company Profile

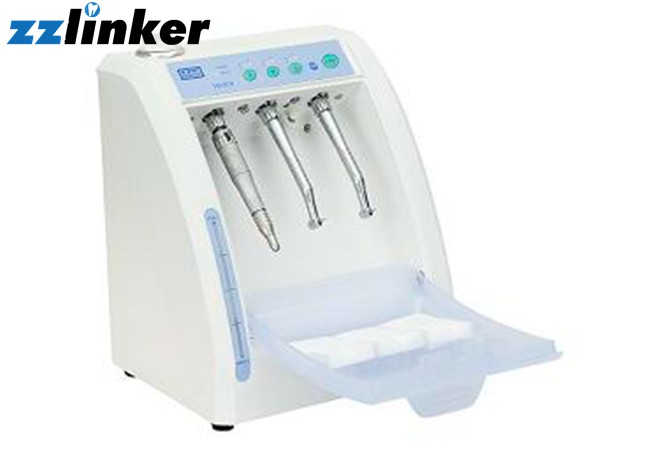

    High Speed Dental Handpiece Lubricating Machine Three Connectors 18L Volume

    Three Connectors Dental Autoclave Sterilizer Dental Handpiece Lubricator


    Introduction

    This product is designed to clean and lubricate the handpiece easily and surely.

    Three Connectors


    Specification

    VoltageAC120V10%~AC230V10% 50/60HZ
    Weight6.8Kg
    Input Voltage24.0VA
    Air Pressure0.25~0.3Mpa(2.5~3.0kgf/cm2)(50~85psi)
    Tank Capacity18L
    DimensionsW280*D275*H360mm

    Opreation Procedures

    (1)Attaching Handpiece

    1)Attaching air turbine handpiece(according to ISO9168)

    1.Remove the bur from the handpiece.

    2.Open the door of the unit, attach the handpiece to the joint ,and tighten the nut securely

    3.Close the door securely.

    2)Attaching E-type handpiece(according to ISO3964 type)

    Straight Handpiece

    1.For the straight handpiece, attach the supplied test bur and lock it

    2. Open the door of the unit,and attach the handpiece to the E-type joint until it locks.

    3. Close the door securely.

    Contra Angle Handpiece

    1. Remove the bur from the handpiece.

    2. Open the door of the unit,and attach the handpiece to the E-type joint until it locks.

    3. For the contra angle handpiece, point the bur insertion hole toward the door side and close the door securely.


    (2)Cleaning and Lubricating


    (3)Removing Handpiece

    1)Removing air turbine handpiece

    Open the door after the mode indicator lights again and cleaning and lubrication cycles has completely finished.Loosen the nut,and pull out the handpiece straight from the joint.

    2)Remvoing E-type handpiece

    Open the door after the mode indicator lights again and clearning and lubrication cycle has completely finished.Pull out the handpiece in axial direction while pressing the ixing release button of the E-type joint.
